Hayward Integrated Control Board | IDXL2ICB1931

Description

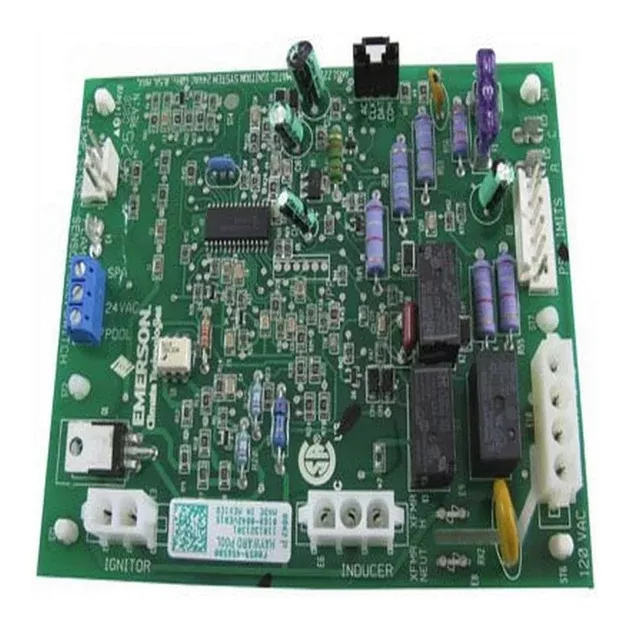

The Hayward Integrated Control Board (IDXL2ICB1931) is the OEM replacement control board for Hayward pool heating and control equipment requiring this board assembly.

IMPORTANT: QUALIFIED TECHNICIAN INSTALLATION REQUIRED
Electrical control components must be installed or replaced by a qualified electrician or certified pool technician. Do not attempt to replace mains-voltage control boards without proper certification and with power fully disconnected at the breaker.

This integrated control board manages the primary electrical functions of the host unit. It interfaces with the system’s pressure switch, high-limit circuit, and temperature sensor via dedicated onboard connectors, coordinating operational control and safety shutoff logic for the equipment.

Specifications

Poolaroo Pro Tip

Before ordering a replacement control board, photograph all existing wiring harness connections and their positions on the old board. Each connector keying and pin count is unique — matching the 4-pin, 3-pin, and 2-pin female connectors as well as the 6-pin pressure switch/high-limit and 3-pin temperature sensor male connectors to the correct header positions on the new board prevents commissioning errors. Always verify the exact part number printed on your existing board before purchase; control board part numbers can vary across equipment revisions that appear visually similar.
