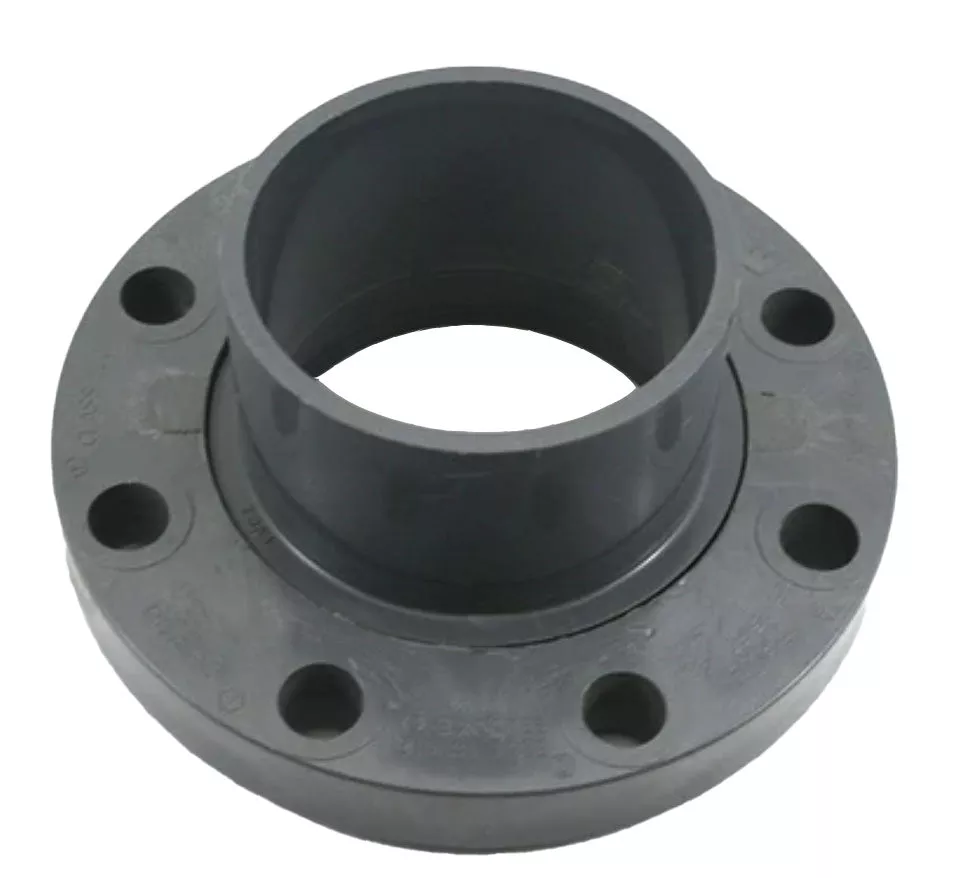

Schedule 80 Van Stone Flange – 5 Inch Spigot

Description

This is a Schedule 80 Van Stone Flange with a 5 inch Spigot connection. The Schedule 80 Van Stone flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds. Schedule 80 fittings are manufactured to ASTM D 2467 standards.This PVC flange complies with the perimeters specified in ANSI B16.5 for bolt patterns. Maximum pressure rating is 150 PSI at 73 degrees F with a maximum operating temperature of 140 degrees F.

A Van Stone flange is a two-piece flange with a rotating, loose ring that makes bolt alignment simple. It makes disassembly easier than a one-piece flange. The fasteners can be tightened or loosened without moving or twisting the attached pipes. These fittings are used in a variety of PVC applications around the world and are molded with a smooth interior wall resulting in less pressure loss and higher volume than conventional metal fittings.

Gaskets and bolts sold separately.
