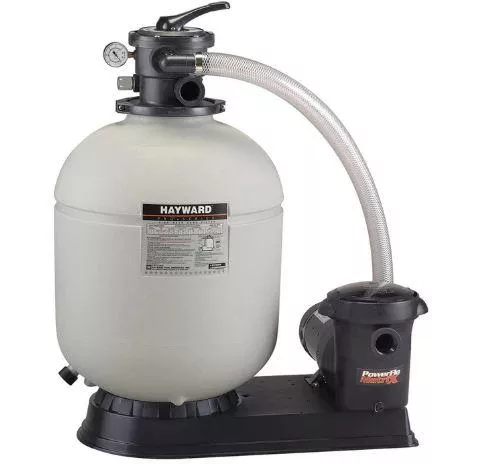

Hayward 16″ Above-ground Filter & Pump Package 1 HP Power-Flo Matrix Pump. Pro Series sand systems are designed and equipped to offer the ideal combination of energy efficiency and outstanding water clarity. A broad selection of filter sizes, pumps, and accessories allows you to choose and merchandise the system(s) that best suit your above-ground pool program.
Application
Above Ground Pools
Features:
Pumps and filters are performance-matched to provide maximum flow and energy efficiency
Filter bases are molded of rugged ABS for long lasting, all-weather performance
7 position PermaGlass XL™ Vari-Flo™ valve provides maximum flow at low pressure drop
All models are one carton systems and UPS shippable up to the 16″ systems
Optional microprocessor pump timer available
Systems are designed for quick assembly and precise alignment of components
Pro Series Filter System
Model No: S144T1540S, Filter Control Valve: SP0704, Pump: Power-Flo, H.P.: 40 GPM, System Components: 3, Ctn.Qty: 1, Ctn.Weight: 44 lbs.
Model No: S166T92S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 52 lbs.
Model No: S166T92STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 52 lbs.
Model No: S180T92, Filter Control Valve: SP0704, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,4, Ctn.Qty: 1, Ctn.Weight: 62 lbs.
Model No: S180T92S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 65 lbs.
Model No: S180T92STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 65 lbs.
Model No: S180T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 66 lbs.
Model No: S180T93STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 1,2,3,4, Ctn.Qty: 1, Ctn.Weight: 66 lbs.
Model No: S210T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
Model No: S210T93STL, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 1,2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
Model No: S230T93S, Filter Control Valve: SP0714T, Pump: Power-Flo Matrix, H.P.: 1 1/2, System Components: 2,3,4, Ctn.Qty: 1, Ctn.Weight: 67 lbs.
FILTER CONTROL VALVES: 7-position Vari-Flo control valves (SP0714T) come complete with integral sight glass and pressure gauge.
System Components
3″ twist lock cord (UL)
Power-Flo Matrix pump
1 1/2″ hose packages include: two (2) 1 1/2″ x 6′ lengths of hose, hose adapters and hose clamps
Deluxe one piece base accepts automatic chlorine feeders (CL110ABG/CL220ABG)
1 year limited warranty
Use only High Rate Sand No. 1/2 Silica Sand (.45mm – .55mm)
